Upload an LPILE report (.txt) that includes p-y curves at specified depths. The app extracts each spring curve and linearizes it into piecewise segments for Excel export.

SUPPORT US

How it works

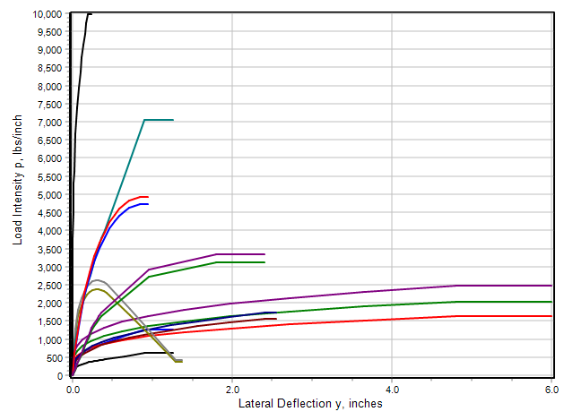

LPILE p-y curves
LPILE Curves

LPILE plots p-y curves at the depths you specify.

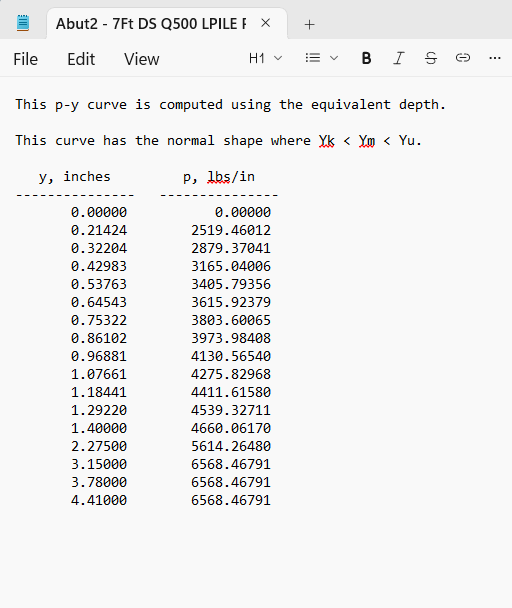

LPILE report text
LPILE Report

Upload the LPILE report .txt with y, inches and p, lbs/in tables.

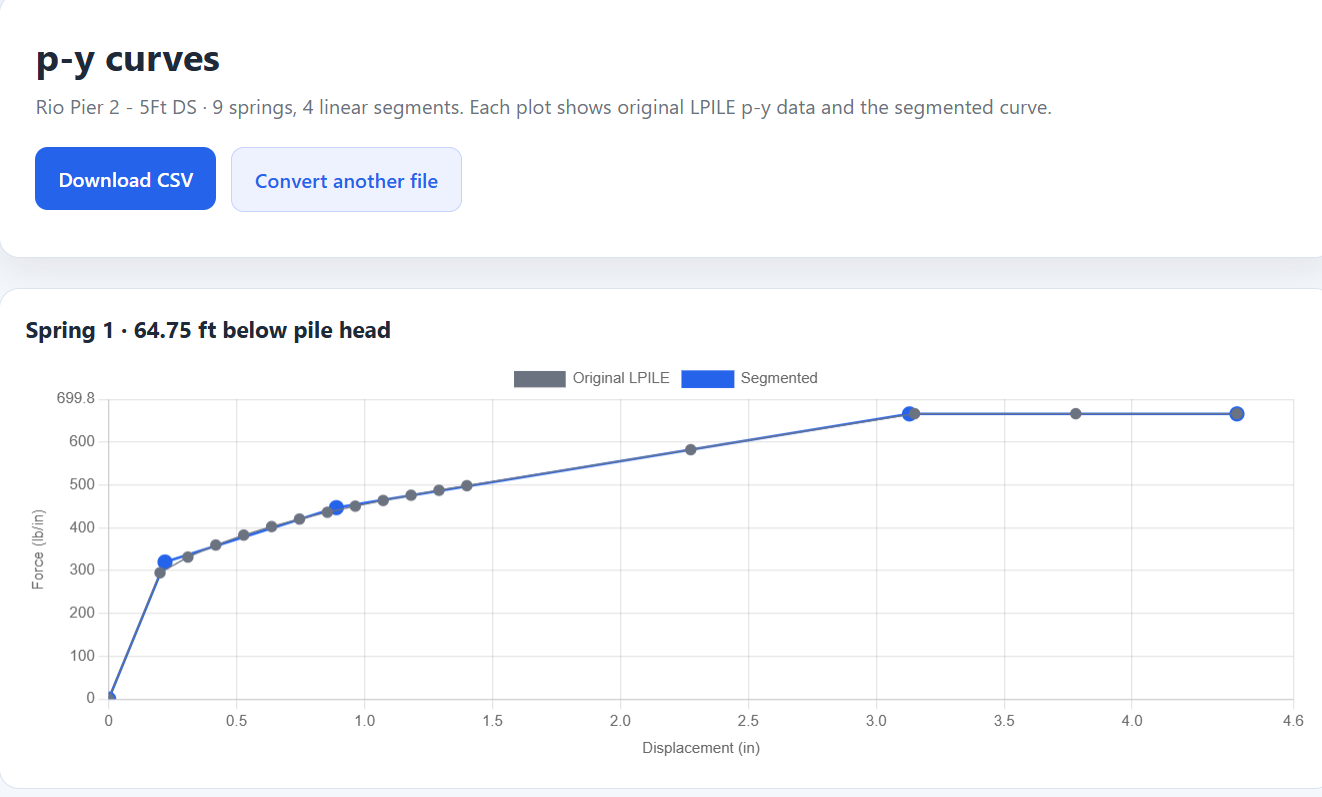

Segmented p-y curve
Segmented p-y curve

Each curve is fit to linear segments. Gray is original LPILE; blue is segmented.

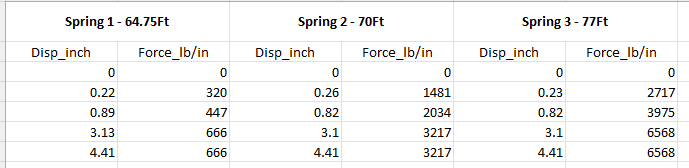

Output Excel file
Output Excel

Download Excel with one merged header per spring: name, depth, displacement, and force.

Output columns follow the original workflow: displacement (in) and force (lb/in) for each spring, linearized with the selected number of segments. On Render free tier, the first visit after 15 minutes of inactivity can take about a minute while the service wakes up.
